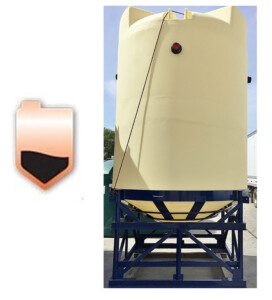

Cone-Bottom Tanks
Generally used in a process environment, where the tank has to be 100% drained, and to address concerns about vortexing.
Poly Processing offers a better and more cost effective full discharge tank option in many cases. Our Vertical IMFO and Sloped Bottom IMFO tank systems provide full tank discharge. Cleaning cone-bottom polyethylene tanks can be challenging. They require additional vertical space and safety precautions. And the tanks themselves can be costly, especially when you have to include a steel stand and basket to support the cone-bottom tank. prices can skyrocket in today’s market with the costs of metal and special coatings. Lead times for welded steel products can be extremely long as well.
Documents
- Download Cone Tank Technical Specification
- For Full Discharge, Don’t Always Rely on Cone Bottom Tanks
Specifications
Cone Tanks (metal stands)
Freight:
Choose the factory closest to you for the best freight rates.
Columns in the table below with arrows in the heading can be sorted by clicking the arrows.
| Drawings | Gal. Per Inch Chart | Stock Number | F.O.B. | Nominal Cap. | Approx. O.D. | Lid Size | Ladder Height | Tank Weight |
|---|---|---|---|---|---|---|---|---|
| 2D CAD 2D PDF | 4110950 | CA | 10950 | 12' | 24" | 18' | 2800 | |
| 2D CAD 2D PDF | 4109050 | CA | 9050 | 12' | 24" | 17' | 2400 | |
| 2D CAD 2D PDF | 4107100 | CA | 7100 | 12' | 24" | 15' | 1900 | |
| 2D CAD 2D PDF | 4006850 | CA | 6850 | 10'-1" | 24" | 19' | 2000 | |
| 2D CAD 2D PDF | 4006500 | LA | 6500 | 9'-3" | 24" | 19' | 2200 | |
| 2D CAD 2D PDF | 4105550 | CA | 5550 | 10'-0" | 24" | 15' | 1550 | |
| 2D CAD 2D PDF | 4005350 | LA | 5350 | 9'-3" | 24" | 16' | 1800 | |
| 2D CAD 2D PDF 3D CAD | 4004100 | VA | 4100 | 7’-11” | 16” | 16’ | 1850 | |
| 2D CAD 2D PDF 3D CAD | 4103650 | CA | 3650 | 8'-2" | 24" | 10' | 850 | |
| 2D CAD 2D PDF | 4002850 | LA | 2850 | 7'-11" | 16" | 13' | 660 | |
| 2D CAD 2D PDF 3D CAD | 4002350 | LA | 2350 | 7'-11" | 16/24" | 9' | 650 | |
| 2D CAD 2D PDF 3D CAD | 4002300 | CA | 2300 | 7'-11" | 16/24" | 10' | 600 | |
| 2D CAD 2D PDF | 4001400 | VA, CA | 1400 | 7'-11" | 16/24" | 7' | 425 | |
| 2D CAD 2D PDF | 4001070 | CA | 1070 | 5'-1" | 17" | 10' | 350 | |
| 2D CAD 2D PDF | 4000735 | CA | 735 | 5'-1" | 17" | 8' | 230 | |
| 2D CAD 2D PDF | 4000615 | CA | 615 | 4'-0" | 17" | 9' | 200 | |
| 2D CAD 2D PDF | 4000510 | LA | 510 | 3'-10" | 10" | 8' | 170 | |
| 2D CAD 2D PDF | 4000480 | CA | 480 | 4'-0" | 17" | 6' | 130 | |
| 2D CAD 2D PDF | 4000335 | CA | 335 | 4'-0" | 17" | 6' | 130 | |
| 2D CAD 2D PDF 3D CAD | 4000220 | LA | 220 | 2'-7" | 10" | 8' | 130 | |
| 2D CAD 2D PDF | 4000195 | CA | 195 | 4'-0" | 17" | 6' | 130 | |
| 2D PDF | 4000105 | LA | 105 | 1'-11" | 10" | 110 | ||
|
Consult drawing for ground clearance. Note: Ladder Height subject to tank stand height. Weights are approximate for shipping estimates only. |
||||||||
Cone Tanks (plastic stands)
Note: Tanks can be supplied as an open top, open top with flat polyethylene bolted cover or molded top with threaded lid. Drawings display open top design.
Columns in the table below with arrows in the heading can be sorted by clicking the arrows.
| Drawings | Gal. Per Inch Chart | Stock Number | F.O.B. | Nominal Cap. | Slope Degrees | Approx. O.D. | Approx. Height w/ Stand | Lid Size | Ladder Height | Tank Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 2D CAD 2D PDF | 4000250 | VA | 250 | 20 | 3'-6" | 5'-7" | 7" | N/A | 100 | |
| 2D CAD 2D PDF | 4000100 | VA | 100 | 20 | 2'-8" | 4'-4" | 7" | N/A | 75 | |
| 2D CAD 2D PDF | 4000055 | VA | 55 | 20 | 2'-0" | 4'-4" | 7" | N/A | 60 | |
|
Consult drawing for ground clearance. Weights are approximate for shipping estimates only. |
||||||||||
